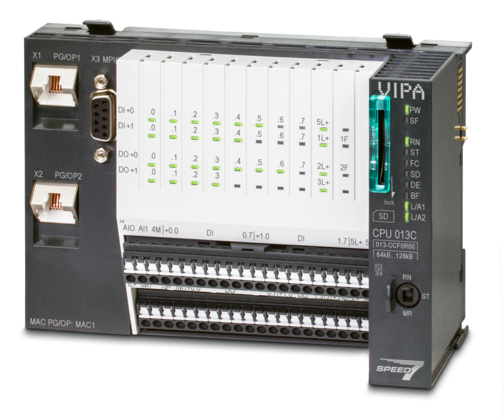

CPU 013C

• Alimentation électrique
• 24 V

• Input Voltage
• x Non

• Current Consumption
• 0.36 A

• Max. current drain at backplane bus
• 1 A

• Max. current drain load supply
• 6 A

• Current consumption from backplane bus
• x Non

• Current consumption from load voltage L+ (without load)
• x Non

• Power Loss
• 7 W

• Number of inputs (digital)
• 16

• Rated load voltage (digital)
• DC 24 V

• Current consumption from load voltage L+ (without load)
• 25 mA

• Signal logic input (digital)
• Sinking input

• Input characteristic curve (digital)
• IEC 61131-2, type 1

• Initial data size (digital)
• 16 bit

• Number of outputs (digital)
• 16

• Rated load voltage (digital output)
• DC 24 V

• Current consumption from load voltage L+ (without load)
• 0.2 A

• Signal logic output (digital)
• Sourcing output

• Output data size (digital)
• 12 bit

• Number of inputs (analog)
• 2

• Rated load voltage (analog)
• x Non

• Current consumption from load voltage L+ (without load)
• x Non

• Voltage inputs (analog)
• ✓ Oui

• Current inputs (analog)
• x Non

• Resolution in bit
• 12 bit

• Measurement principle
• successive approximation

• Basic conversion time
• 2 ms

• Initial data size
• 4 Byte

• Number of outputs (analog)
• x Non

• Output voltage ranges
• x Non

• Output current ranges
• x Non

• Resolution in bit (analog)
• x Non

• Conversion time (analog)
• x Non

• Output data size (analog)
• x Non

• Number of counters
• 4

• Counter width
• 32 bit

• Maximum input frequency
• 100 kHz

• Maximum count frequency
• 400 kHz

• Maximum count frequency
• 400 kHz

• Maximum count frequency
• 400 kHz

• Maximum count frequency
• 400 kHz

• Number of channels
• x Non

• Input voltage (rated value)
• x Non

• Power stage
• x Non

• PWM frequency
• x Non

• Type of encoder
• x Non

• Encoder frequency
• x Non

• Encoder resolution (internal)
• x Non

• Control type
• x Non

• Terminal voltage max.
• x Non

• Terminal current max.
• x Non

• Total current per module, max.
• x Non

• Number of clamps
• x Non

• Binding of potential
• x Non

• Point-to-point protocol
• ASCII protocol, STX/ETX protocol, 3964(R) protocol, USS master protocol, Modbus master protocol, Modbus slave protocol

• Encoder Supply: Number of outputs (L+n)
• x Non

• Rated output current
• x Non

• Port mode
• x Non

• Load memory, integrated
• 128 kB

• Work memory, integrated
• 64 kB

• Work memory, maximal
• 128 kB

• Memory card slot
• SD/MMC-Card with max. 2 GB

• Racks, max.
• 5

• Modules per rack, max.
• 64 minus number line extensions

• Bus de terrain
• x Non

• Connector
• x Non

• Topology
• x Non

• Transmission speed, max.
• x Non

• Address range inputs, max.
• x Non

• Address range outputs, max.
• x Non

• Material
• PPE / PPE GF10

• Assemblage
• Profile rail 35 mm

• Width
• 147 mm

• Height
• 100 mm

• Depth
• 83 mm

• Net weight
• 320 g

• Gross weight
• 355 g

• Certifications
• UL certification, KC certification, UKCA certification, ChinaRoHS certification

• Safety protocol
• x Non

• Safety requirements
• x Non

• Circuit monitoring
• x Non

• Max. operating temperature
• 60 °C
